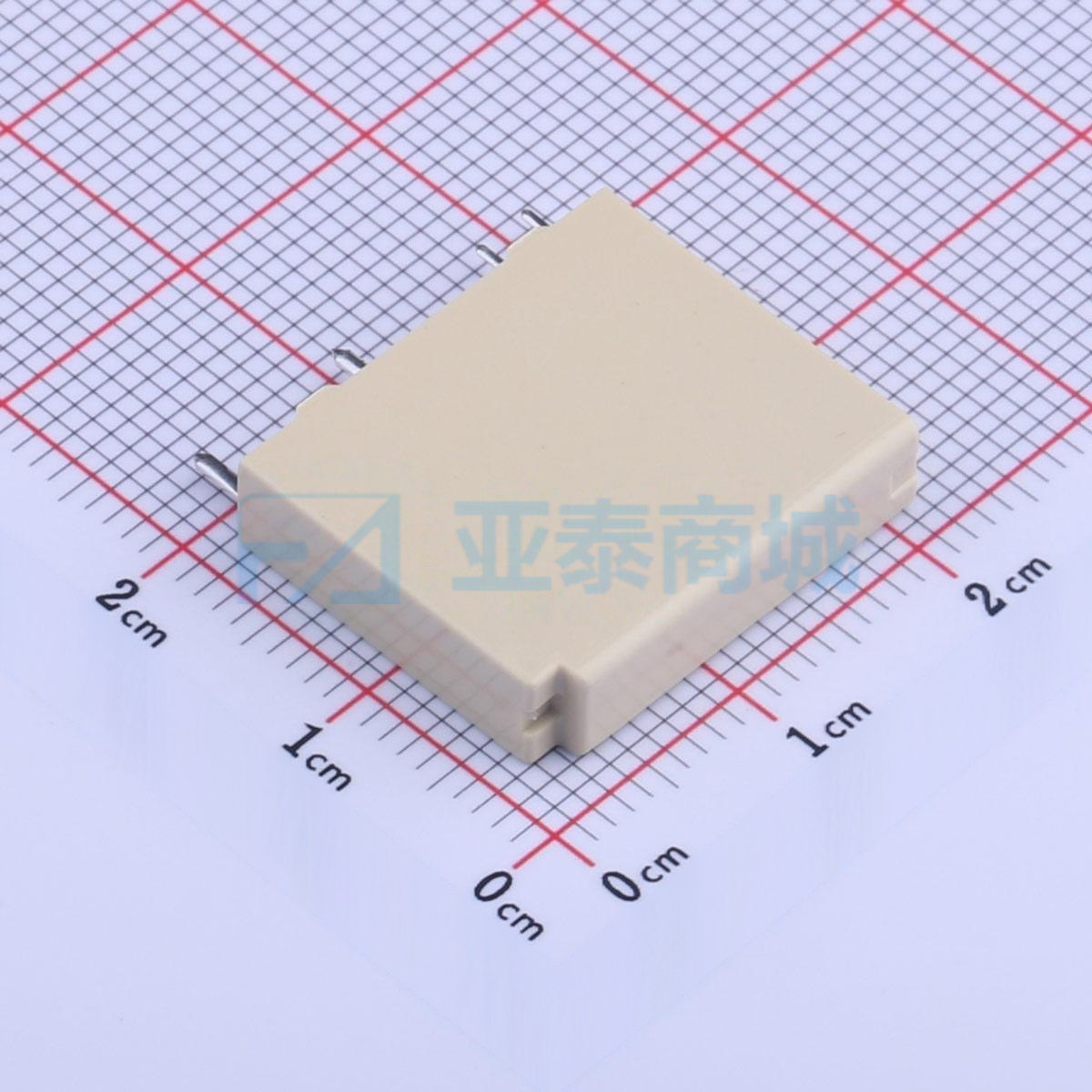

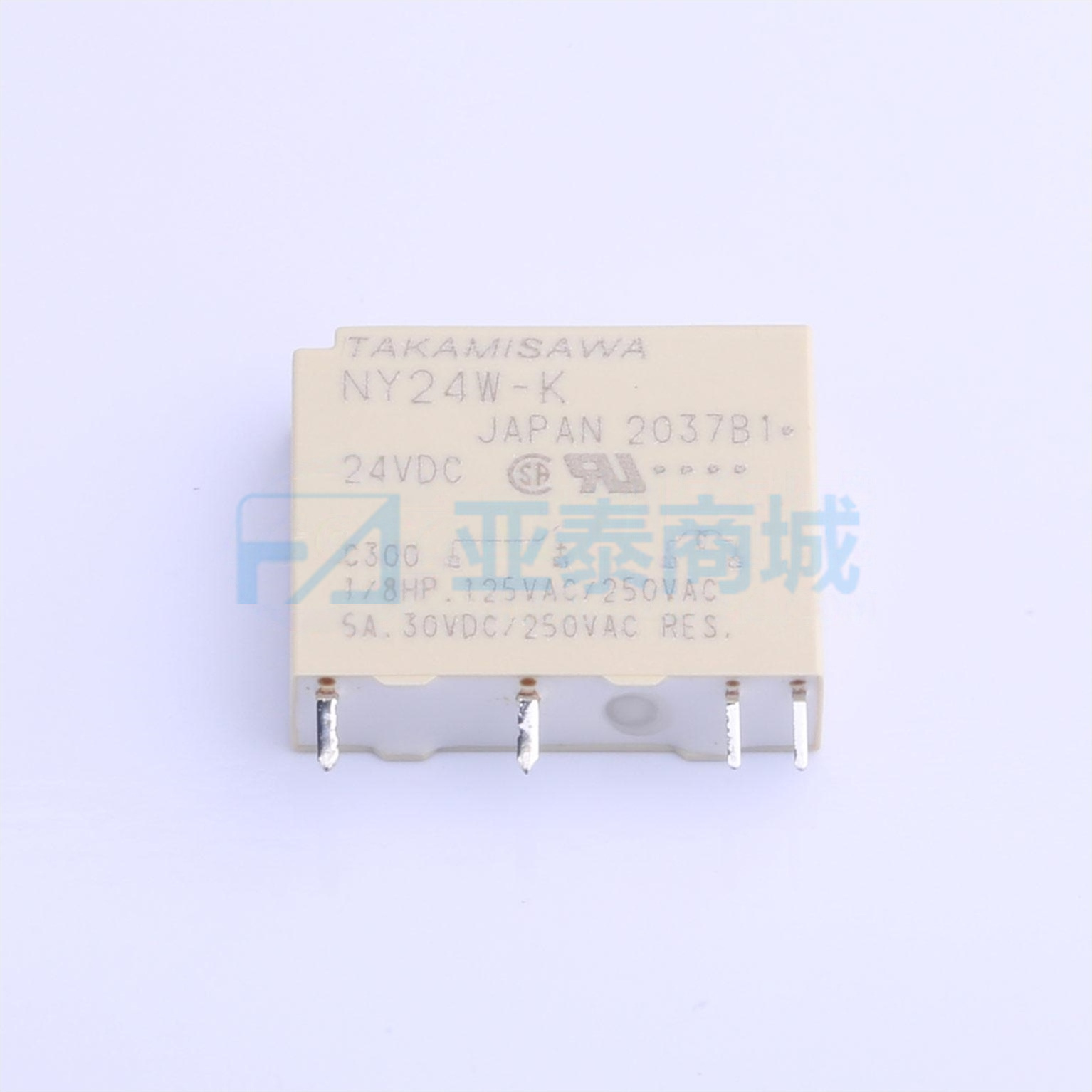

NY-24W-K-IE
-
SIP,20.1x5mm
- 品牌名称FUJITSU(富士通)
-
商品型号
NY-24W-K-IE -
商品编号
NY-24W-K-IE -
商品封装
SIP,20.1x5mm -
分类
功率继电器
-
商品参数
|
|
属性 | 参数值 |
|---|---|---|
| 商品目录 | 功率继电器 | |
| 产品类型 | 功率继电器 | |
| Relay Construction | Non-Latching | |
| Coil Suppression Diode | No | |
| Termination Style | Solder Pin | |
| Package / Case | SIP | |
| Push To Test Button | No | |
| Type | Power Relay | |
| Coil Voltage DC | 24V | |
| Coil Resistance | 4800(ohm) | |
| Coil Current | 5(mA) | |
| Contact Arrangement | SPST-NO | |
| Contact Current Rating | 3(A) | |
| Product Height (mm) | 17.5(mm) | |
| Product Depth (mm) | 5(mm) | |
| Voltage Rating (VAC) | 250(V) | |
| Maximum Power Rating | 90W/750VA | |
| Contact Form | 1 Form A | |
| Operating Temp Range | -40C to 90C | |
| Voltage Rating (VDC) | 30(V) | |
| Pin Count | 4 | |
| DE 6A0 LETED | Compliant | |
| Mounting Style | Through Hole | |
| Rad Hardened | No | |
| Operate Time | 10(ms) | |
| Seal | Sealed | |
| LED Indicator | No | |
| Contact Material | Silver/Gold | |
| Product Length (mm) | 20.1(mm) | |
| Pick-up Voltage (Max) | 16.1VDC |
数据手册PDF
参数完善中
梯度
含税售价
库存总量
(单位：0个)-
仓库库存数量
0
购买数量
个
起订量： 个
