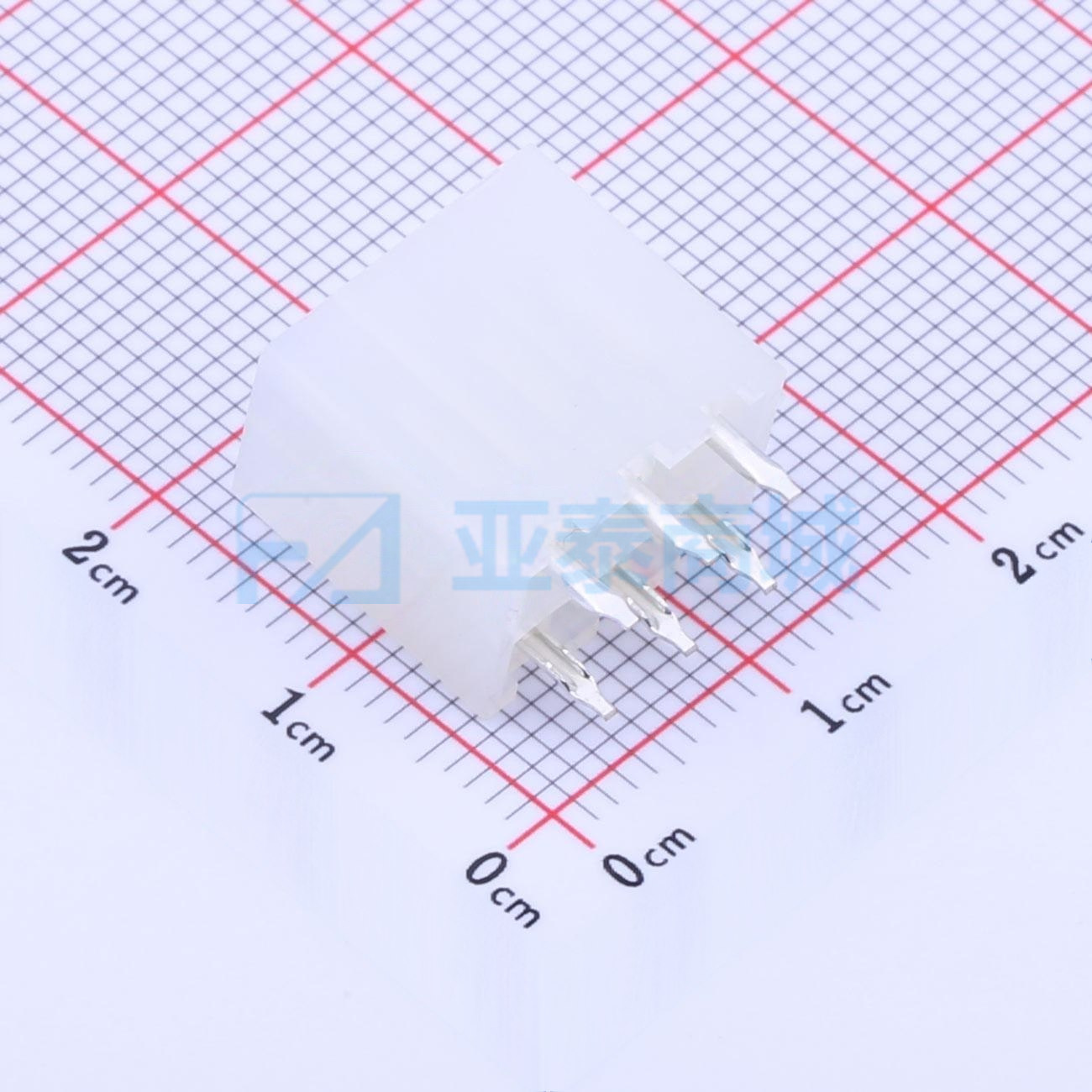

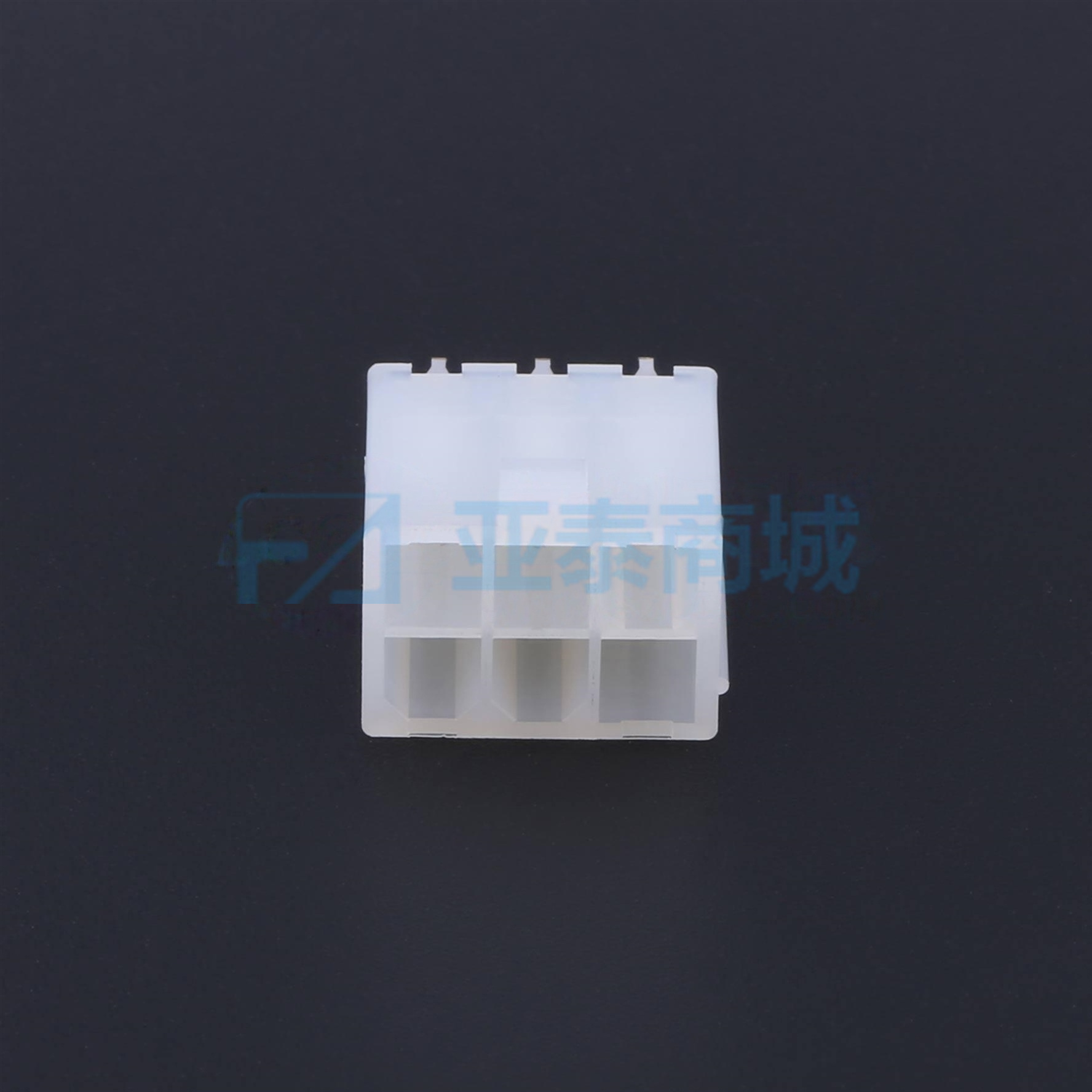

CP-01306110
-
插件,P=4.2mm
- 品牌名称Cvilux(瀚荃)
-
商品型号
CP-01306110 -
商品编号
CP-01306110 -
商品封装
插件,P=4.2mm -
分类
线对板针座
-
商品参数
|
|
属性 | 参数值 |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 产品类型 | 线对板针座 | |
| Series | CP-01 | |
| Package | Tray | |
| Connector Type | Header | |
| Contact Type | Male Pin | |
| Pitch - Mating | 0.165" (4.20mm) | |
| Number of Positions | 6 | |
| Number of Rows | 2 | |
| Row Spacing - Mating | 0.165" (4.20mm) | |
| Number of Positions Loaded | All | |
| Style | Board to Cable/Wire | |
| Shrouding | Shrouded - 4 Wall | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Contact Length - Mating | - | |
| Contact Length - Post | 0.134" (3.40mm) | |
| Overall Contact Length | - | |
| Insulation Height | 0.504" (12.80mm) | |
| Contact Shape | Square | |
| Contact Finish - Mating | Tin | |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | |
| Contact Finish - Post | Tin | |
| Contact Material | Brass | |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | |
| Features | - | |
| Operating Temperature | -25°C ~ 85°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-2 | |
| Insulation Color | Natural | |
| Current Rating (Amps) | 9A | |
| Voltage Rating | 600VAC |
